Load cells PR 6241
Compression load cells from 100 kg to 5 t

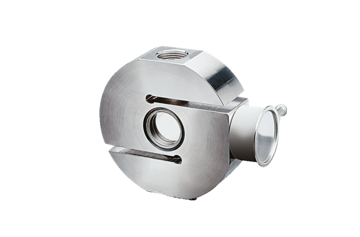

Product features Compression S-Type Load Cell PR 6241
Specially designed for weighing small and medium-sized process containers and for high-precision dosing. For use in EX zones 1, 2, 20, 21, 22 and FM DIV 1.
- Ultra-high precision load cell for batching applications
- Load cell capacity range from 100 kg to 5 t
- Accuracy class: D1 (0.04 %), C3 (0.015 %) and C6 (0.008 %)
- Corresponding mounting kits
Applications
- Fill quantity control
- Filling and Dosing
- Weighing
Certifications
- ATEX
- FM
- IEC-EX
- NTEP
- OIML
Product details
The PR 6241 range of load cells is specially designed for weighing small and medium sized process vessels and for high-precision dosing. The unique design principle, in combination with the FlexLock-installation kits, makes it possible to counterbalance movements arising from mechanical or thermal expansion or contraction of the vessel or its supporting construction.
Load cell construction
S-shape design with integrated load return. Full stainless steel construction, hermetically sealed, welded, filled with inert gas.
Material
Load cell: 1.4542 (DIN 17440) similar to S604, S622 (B.S.), 17 - 4PH
Protection
IP 68, IEC 529 (equivalent to NEMA 6). The load cell can be submerged in water to a depth of 1.5m for 10,000 hours. Robust, flexible, screened; Sheath: TPE Thermopl. Elastomere, Colour: grey (EX: blue); Diameter: 5 mm, wires 4 x 0.35 mm2; Length: 5 m
Bending radius
Fixed installation: ≥ 50mm; Flexible installation: ≥ 150mm
Corresponding mounting kits: PR 6043 Mini FlexLock, PR 6041 without constrainer, PR 6044 with additional functions and constrainer
