Load cells PR 6241

Compression load cells from 100 kg to 5 t

Request this product Download datasheet

load cell pr 6241

Ultra-precise

Load cell for dosing applications

Large load range

From 100 kg to 5 tonnes

Associated installation kits

PR 6043 Mini FlexLock, PR 6041 without restraint, PR 6044

Usable in Ex zone

1, 2, 20, 21, 22 and FM DIV 1

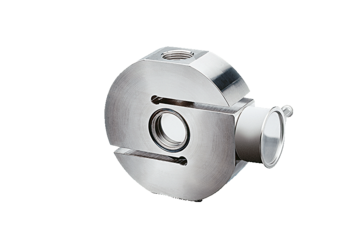

Product details Compression S-Type Load Cell PR 6241

The unique design principle of the PR 6241 series load cells, in conjunction with the FlexLock mounting kits, enables the compensation of movements caused by mechanical or thermal contraction or expansion of the vessel or the supporting structure.

Specially designed for weighing small and medium-sized process vessels and for high-precision dosing, the load cells are made entirely of stainless steel. A special design feature is the combination of "true" gravity principle and pendulum principle, which results in unrivalled accuracy.

Load cell design

S-shaped design for moment-free load application. Made entirely of stainless steel, hermetically welded, filled with inert gas.

Protection class

IP68, IEC 529 (corresponds to NEMA 6). The load cell can be immersed in 1.5 metres of water for 10,000 hours.

Robust, flexible, shielded, cable 4 x 0.35mm2; TPE thermoplastic elastometer; sheath colour: grey; PR 6241/.. E: blue; diameter: 5mm, length: 5m

Bending radius

Fixed installation: ≥ 50mm, Flexible installation: ≥ 150mm

Applications

  • Fill quantity control
  • Filling and Dosing
  • Weighing

Certifications

  • ATEX
  • FM
  • IEC-EX
  • NTEP
  • OIML

Specifications

Product type

Product handling

  • PR 6041/PR 6043/PR 6044 installation kits for individual requirements
  • With Converter Connexx® also as a digital weighing solution

IP protection class

  • IP68

Material

  • Stainless steel 1.4542
