Load cells LC Nito®

Up to IP68 / IP69 Stainless steel beam load cells for vessel weighing, machine integration or platform scales

Request this product Download datasheet

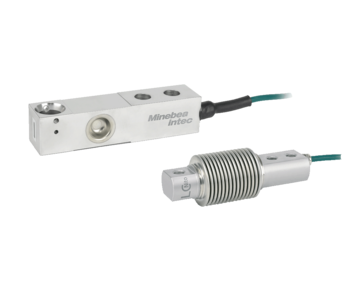

Product picture of LC Nito bending beam load cells PR 77 and PR 79

Verifiable according to OIML and NTEP

For the most accurate weighing results up to class C6

Hermetically welded

IP68 protection class for demanding environments

Expertise included

High quality of advice for individual projects

Optional extensions

Transmitters, indicators and controllers for every need

Product details Bending beam load cell LC Nito®

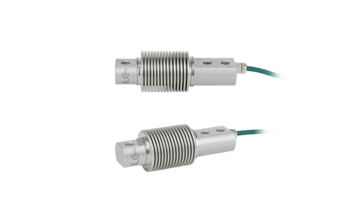

The beam load cells of the LC Nito® series are specially designed for weighing process vessels and for use in belt and platform scales. The bending beam load cell PR 77 with nominal loads from 10 kg to 500 kg, accuracy classes up to C6 and optional approvals for hazardous areas enable use in any industrial application. The PR 79 square beam load cell made of stainless steel is the allrounder for vessel weighing with a load range of 91 kg to 5099 kg and an IP protection of IP68 / IP69. Available with a thread load introduction (PR 79) or a blind-hole load introduction (PR 79T). The fitting mounting kits of the PR 9X series ensure that the load cell’s weighing results are as accurate as possible whether it is a vessel application or the integration into belt or platform scales.


  • ATEX
  • IEC-EX
  • NTEP
  • OIML


  • Fill quantity control
  • Filling and Dosing
  • Weighing


Product type

  • Bending beam load cell up to 500 kg
  • Square beam load cell up to 5099 kg

Product handling

  • Easy integration thanks to standard dimensions

  • Weighing electronics optionally available

Protection class

  • PR 77: IP66 / IP68
  • PR 79: IP66 / IP68 / IP69


  • Stainless steel 1.4545
