Weighing electronics PR 5230

High-precision weighing transmitter in a field housing for weight values from silo and hopper scales

Request this product Download datasheet

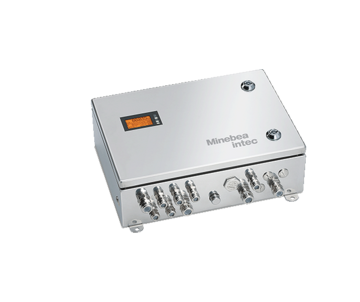

Product picture weight transmitter PR 5230

Processing

of weight values with up to 120,000 steps

Smart Calibration

PC-based calibration without weights for minimised installation times

Remote service

Avoids downtimes in production

EasyFill® software

for single-component dosing of liquids, powders and granulates

Product details Weight transmitter 5230

The PR 5230 weighing transmitter processes reliable and high-precision weight values from silo and hopper scales via analogue and digital load cells. The field housing enables direct and safe installation regardless of the ambient conditions.

The PR 5230 weighing transmitter is equipped with three freely configurable digital inputs and outputs as standard. These can be assigned an application-specific limit and limit value function and associated values to prevent overfilling and underfilling. The weighing transmitter can be easily connected to an external WLAN adapter. An intrinsically safe load cell connection for the operation of load cells in ATEX Zone 1/21 without additional current-limiting barriers is available as an option. A printer can be connected directly for the documentation and printing of weight data.

Further features of the PR 5230 weighing transmitter:

  • Reliable and fast processing of weight values with up to 120,000 steps. The integrated display enables direct status monitoring.
  • Smart Calibration" enables PC-based calibration completely without weights. This efficiently minimises installation times.
  • The EasyFill® software for single-component dosing of liquids, powders and granulates, which is integrated as standard, saves programming effort and enables rapid process changes.

Certifications

  • ATEX
  • EAC
  • OIML

Applications

  • Fill quantity control
  • Filling and Dosing
  • Weighing

Specifications

Product handling

  • Installation independent of ambient conditions
  • Smart Calibration"" without weights"

IP protection class

  • IP65

Material

  • Stainless steel, electropolished
