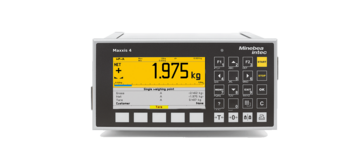

Weighing electronics MAXXIS 4
The freely programmable process controller, designed for applications as diverse as simple weighing complex manual and automatic Batching and single component Filling.
Product features Weight controller Maxxis 4
The freely programmable process controller, designed for applications as diverse as simple weighing complex manual and automatic Batching and single component Filling. Extensive connectivity options and compatibility with all analogue load cells and the digital Pendeo® load cells as well as platform scales and many more weighing solutions.
- Connection of one analogue or one digital scale or Pendeo® digital load cell system
- 4.3" large colour display with multilingual interface and integrated help function for intuitive operation
- Multiple interface possibilities: Ethernet TCP/IP, Modbus TCP, Profibus DP, DeviceNet, Profinet, Ethernet/IP and USB
- Equipped with an internal web server, the Maxxis 4 can be configured and controlled via any standard web browser
- Automatic backup function saving data to SD cards for full transparency and traceability
- Fill quantity control
- Filling and Dosing
The Maxxis 4 from Minebea Intec combines accuracy, connectivity and functionality to provide a process controller unlike any other. Specifically designed to fulfill many of the tasks manufacturers face today, the Maxxis 4 easily takes control of all modern automation processes. As a multiple use device, the Maxxis 4 is pre-programmed to control a diverse range of complex applications.
Equipped with an internal web server, the Maxxis 4 can be controlled via any standard web browser or a remote display with VNC capabilities. Additionally a wide range of interface options, USB connections and an Ethernet Port ensure the Maxxis 4 is able to connect with any existing infrastructure. The compact design in a panel enclosure allows space-saving installation in cabinets.
To make sure that even novice users can control complicated applications with ease, an integrated help function is installed on the Maxxis 4.
Weight controllers are weight indicators with integrated control functionality for the automation of weighing processes. Minebea Intec offers two weight controllers which are freely programmable (IEC61131 programming language) or can be equipped with the following predefined software applications:
- BASIC - for simple weighing applications
- IBC – for single-component filling applications
- BATCH – for complex manual and/or automatic batching applications
Industrial solutions Our products for your production processes
Our systems and services are oriented towards the requirements of our customers from a wide range of industries. In this way, we ensure that with Minebea Intec you can design your production processes safely and efficiently without having to make compromises. This starts with individual product features and stops only after exceeding global standards.
- Building Materials
- Food & Beverage
- Machinery / OEM
The processes in the agricultural industry require robust, reliable solutions with safe measurement results. Minebea Intec’s extensive range of weighing products, both automated and manual, has a high-quality solution for every need.Our solutions for agriculture industry
For the weighing of building materials, the Minebea Intec portfolio offers the appropriate robustness, durability and IP protection class. Robust dosing and filling equipment is also supplied.Our solutions for the building materials industry
Minebea Intec offers innovative and robust weighing technologies for the chemical industry.Our solutions for chemical industry
The highly automated processes in cosmetics production require precise measurement results. Minebea Intec offers versatile industrial weighing solutions for a wide range of applications as well as a broad spectrum of dosing, formulation, sorting, filling and packaging solutions.Our solutions for cosmetics industry
Food & Beverage
Minebea Intec is a leading supplier of weighing technologies to the food and beverage production industry. Armed with a deep understanding of the challenges food and drink manufacturers face, the company has developed a range of products and solutions that are perfectly tailored to meet their needs in relation to quality and food/drink safety, while also enhancing efficiency and protecting production equipment.Our solutions for food and beverage industry
Machinery / OEM
Process integrators and machine manufacturers in various industry sectors can benefit from the precision, hygienic design, corrosion resistance and ingress protection offered by Minebea Intec equipment. A wide product range is available.Our solutions for machinery / OEM
Minebea Intec has decades of experience in providing high quality technologies to pharmaceutical manufacturers around the world.Our solutions for pharmaceutical industry
Our technologies ensure reliable processes in the confectionery industry along the production and packaging line. However, product safety and quality are only one side of the coin.Our solutions for confectionery industry
Minebea Intec products ensure highly precise and reliable measurement results for plastics processing.Our solutions for plastics industry
Minebea Intec offers high quality industrial weighing solutions for the dairy processing industry.Our solutions for dairy industry
|Category||File Name||File Size||File Type|
|Brochure||Brochure // Vessel and Silo Weighing||5,98 MB|
|Manual||Installation Manual Maxxis4||2,29 MB|
|Operating Instructions Maxxis4||2,90 MB|
|Operating Instructions BASIC PR 5500/80||782 KB|
|Operating Instructions PHASE PR 5500/81||4,38 MB|
|Operating Instructions Batch PR 5500/83||1,02 MB|
|Operating Instructions IBC PR 5500/86||3,35 MB|
|Additional information PR 1899/98 NTEP Kit for PR 5500||2,36 MB|
|Datasheet||Datasheet // Weight controller Maxxis 4||2,08 MB|
