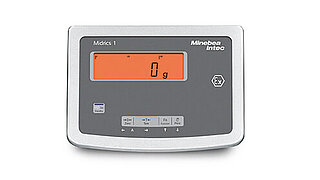

Product details Weight Indicators Midrics®

Depending on the application, the weighing indicator Midrics® can be set up independently of the platform location or mounted on a pedestal. Easy-to-use versatile application programs for applications such as counting, checking or pre-packaging control are already pre-installed. Two product variants are available:

Midrics® Indicator MIS 1

  • Display 20 mm LCD, 14-segment for weighing data, backlit
  • Membrane switch, optional RS232, RS485, RS422, 4-20mA

Midrics® scale indicator MIS2

  • Display 20 mm LCD, 14-segment for weighing data, bar graph, backlit
  • Connection for barcode reader, battery operation
  • Optional: RS232, RS485, RS422, 4-20mA, digital inputs/outputs with selectable application programme: weighing, counting, checking, classifying (3 or 5 classes), totalising, net-total, weighing in percent or neutral measuring

Applications

  • Classification
  • Counting
  • Fill quantity control
  • Filling and Dosing
  • Formulation
  • Weighing

Certifications

  • ATEX
  • NTEP
  • OIML

Specifications

Product type

  • Weighing electronics
  • Desktop weighing indicators and controllers

Product handling

  • Easy operation and cleaning
  • Weighing indicator can be set up independently of the platform location, depending on the application

IP protection class

  • IP65

Material

  • Stainless steel 1.4301
