Inspection solutions Vistus® Pipeline

Vistus® Pipeline detects and removes metal contaminants in pumped viscous or liquid products.

Request this product Download datasheet

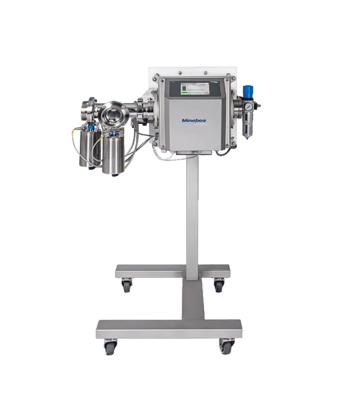

Metal detector Vistus Pipeline Meat

Product features Metal detector Vistus® Pipeline

The system includes well-known Vistus® electronics, intuitive touch displays and optional interfaces for monitoring and control. Different types of separators and various connections and mounting options are available.

All detectors in the Vistus® series are based on high-quality components and a broad frequency spectrum for maximum detection performance and reliability. Dialogues tailored to different user groups ensure maximum user-friendliness and thus also enable intuitive operation. A wide range of variants and dimensions are available for individual requirements and applications, enabling precise integration into the production line. Of course, we also offer individual engineered-to-order solutions on request.

For consumer protection, there are numerous applications in the food industry. The aim is to ensure that products leave the factory free from metal contamination. In this way, Minebea Intec metal detectors support compliance with industry regulations such as HACCP, IFS and BRC. They protect brand image and avoid costly product recalls.

Applications

  • Foreign body detection

Product details

Vistus® Pipeline and Vistus® Pipeline meat meet the most stringent sensitivity and technical requirements of manufacturers processing viscous and liquid food products such as sauces, jams, marmalades, baby foods, meat emulsions, etc. To cover a wide range of applications, the product can be configured to meet the most demanding customer requirements.

Important product features of the detection systems are:

  • Various separators available
  • Easy installation and operation
  • Prevents product recalls and ensures / enhances production line productivity
  • Also available as Vistus® Pipeline meat

Product advantages

Minebea Intec develops and manufactures industrial metal detectors and metal detection systems for the inspection of food and other products, such as bulk or packaged goods. The systems detect both ferrous and non-ferrous metal and stainless steel contaminants. Reliable rejection systems ensure that all products contaminated with these metals are reliably rejected from the production line.

Metal detectors Vistus® Pipeline and Vistus® Pipeline meat - the optimal solution for the food industry

Vistus® Pipeline and Vistus® Pipeline meat for meat applications are specifically designed to meet the needs of producers of pumped goods.

For production line and quality assurance teams, the Vistus® pipeline is a reliable tool for product safety and brand protection.

Important features of the two products:

  • Arc valve separator in hygienic design
  • Multiple interfaces such as XML, TCP-IP for connectivity and detection statistics with SPC@Enterprise, pave the way to greater productivity
  • Vistus® Pipeline meat is a high-pressure system with a Arc valve (ABV) easy open separator, which is specially designed for meat applications.
  • Product learning mode and individual operating levels offer maximum flexibility and ease of use

Product specifications

Product/Cleaning TemperatureWithout air cooling: max 70°C; With air cooling: max 120°C
Ambient Temperature-10°C to +55°C
Housing1.4301 stainless steel (AISI 304)
Protection RatingIP65
Throughput capacity Q (m³/h)3.5 - 6.0
Throughput/Product speed v max (m/s)0.2 - 0.5



Increase your expertise in foreign object detection

Preventive measures and foreign object management have become increasingly important in the food industry. One reason for this can be found in the changing requirements of food standards. Another reason is the public's increased sensitivity to contaminated and defective products. In the age of the media, product recalls can mean much more than economic losses: in the worst case, they damage the image of the entire company.

Read White Paper


Industrial solutions Our products for your production processes

Our systems and services are oriented towards the requirements of our customers from a wide range of industries. In this way, we ensure that with Minebea Intec you can design your production processes safely and efficiently without having to make compromises. This starts with individual product features and stops only after exceeding global standards.

  • Food & Beverage
  • Pharmaceutical
  • Chemical
  • Cosmetics
1 of 2
2 of 2

Food & Beverage

Minebea Intec is a leading supplier of weighing and inspection technologies to the food and beverage production industry. Armed with a deep understanding of the challenges food and drink manufacturers face, the company has developed a range of products and solutions that are perfectly tailored to meet their needs in relation to quality and food/drink safety, while also enhancing efficiency and protecting production equipment.

Our solutions for food and beverage industry

Pharmaceutical

Minebea Intec has decades of experience in providing high quality technologies to pharmaceutical manufacturers around the world.

Our solutions for pharmaceutical industry

Chemical

Minebea Intec offers innovative and robust weighing and inspection technologies for the chemical industry.

Our solutions for chemical industry

Cosmetics

The highly automated processes in cosmetics production require precise measurement results. Minebea Intec offers versatile industrial weighing solutions for a wide range of applications as well as a broad spectrum of dosing, formulation, sorting, filling and packaging solutions.

Our solutions for cosmetics industry

Mediacenter

Category File Name File Size File Type
Brochure
Brochure Brochure // Industrial Metal Detectors 4,69 MB pdf
Datasheet
Datasheet Datasheet // Metal detector Vistus® Pipeline. 2,77 MB pdf
