Inspection solutions Dymond D

The Dymond D side shooters offer reliable detection of foreign objects in tall, upright packaging

Request this product Download datasheet

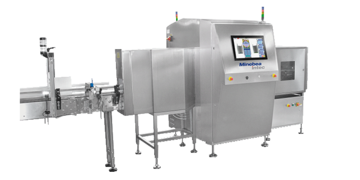

Product image of model Dymond D

Product features Dymond D

The compact hygienic design, interfaces and reliable image processing at high speeds allow for efficient integration into automated production processes.

  • Reliable inspection with a high throughput
  • Maximum safety through multi-sided radioscopy opens up new possibilities in product design
  • Seamless integration and installation
  • Quick and easy cleaning thanks to the hygienic design
  • Industry 4.0 ready

Certifications

  • FM

Applications

  • Fill quantity control
  • Foreign body detection
  • Statistics

Product details

Technical DataDymond D
X-ray power2 x 90 kV, 9 mA (double-beam technology)
Detector resolution0.4 mm
Belt speed rangeUp to 60/120 m/min
Human interface21.5 inch touchscreen
Radiation safetyFDA CFR 21 part 1020,40
Protection ratingExternal housing: IP34 (standard),
Nema 4X (optional)
Inspection tunnel: IP65
Conveyer height740 – 1060 mm

Get the most out of your X-ray inspection

Ever since Wilhelm Conrad Röntgen discovered the ‘invisible rays’ on 8 November 1895, X-ray diagnostics has become an establis-hed practice in many fields. Today, X-rays are not only used for medical purposes, but also support the food industry in its aims to ensure food quality and safety.

Read White Paper
