X-ray inspection system Dymond

For reliable inline inspection of packaged food

Request this product Download datasheet

Reliable inspection

Thanks to high detection sensitivity

Maximum safety

Detects foreign objects and fill levels

Easy integration

SPC@Enterprise, OPC-UA, ModBus and Ethernet

Intuitive operation

Simple by learning the products

Product features X-ray inspection system Dymond

The innovative X-ray inspection system Dymond reliably detects foreign objects, including in desserts, salad mixes or ready-made meals. At the same time, Dymond helps to check important quality attributes, such as mass, filling levels, completeness and integrity.

Featuring 3 models it is able to cover the majority of applications for inspecting packaged products.

Applications

  • Fill quantity control
  • Foreign body detection
  • Statistical process control
  • Statistics

Product details

Product type

  • X-ray inspection system
  • Topshooter
  • for packaged products

Products handling

  • Foreign object detection
  • level control

Protection class

  • IP 34
  • IP 65

Material

Stainless steel

What size for my product?

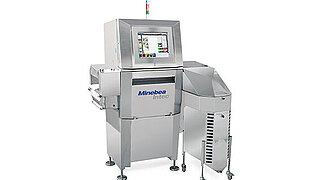

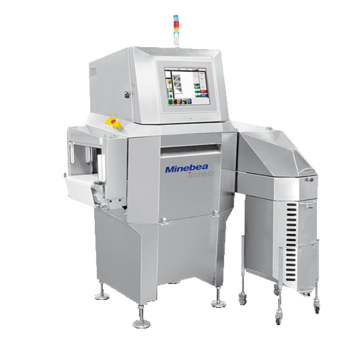

Dymond 40, 80, 120, 160

The Dymond series sets a standard in X-ray inspection for food with crystal-clear X-ray images, a high degree of accuracy and low energy costs – all available in four different machine sizes. Simply choose the right solution for your products.

Read more


Best Practice

Double check product quality An X-ray inspection system from Minebea Intec tackles even the most complex requirements in yoghurt production

  • Key facts
  • Challenge
  • Solution
  • Customer
Download Best Practice

Key facts

The two-chamber tubs are filled with yoghurt and cereal mixtures via a multi-filling system. However, time and again, this causes unwanted clumps of cereal residue to form

More about the challenge

Challenge

When filling two-chamber tubs with yoghurt and various cereals, time and again there were unwanted, uncontrollable deposits of substandard product residues. The manufacturer pinpointed the problem to the filling process and to the particular properties of the products. The cereals naturally have a low fat content, which results in the cereal dust adhering to the walls of the filling system chamber. This then clumps and can fall into one of the tubs at any time. The tubs are sealed with an aluminium foil lid straight after filling, so a visual quality control check is out of the question.

More about the solution

Solution

Due to the fact that the two-chamber tubs were sealed with aluminium foil, an X-ray inspection system Dymond from Minebea Intec was already integrated into the packaging line at the detection point for foreign objects. The sales team sought the advice of Minebea Intec’s X-ray technology experts and together they developed a solution – with help from the x-ray inspection system. The advanced Dymond system doesn’t just detect a wide variety of foreign objects, such as glass, stone or metal, but it can also recognise deviations in a product’s consistency. Together, the system’s settings were successfully modified. Since then, the system has reliably removed not only contaminated products from the product flow but also substandard products.

More about the client

Customer

The customer is a well-known dairy product manufacturer based in Germany. The company has a diverse product range and is known throughout the whole of Europe. Be it cheese, ice cream or yoghurt, this manufacturer delivers delicious products of the highest standard.


You need help configuring your weighing or inspection-solution?

Simply send us your questions or requests via the contact form or give us a call. We will be happy to help you.

Request a consultation
