Load cells from the manufacturer

A load cell is used to determine mass: The weight force exerted by the sample is converted into an electrical signal by the load cell. Load cells are therefore the most important components of an electronic scale. One of the most widely used technologies is based on strain gauge technology: an analog load cell consists of a measuring element (so-called spring body) made of steel or aluminum, on which a strain gauge (Wheatstone bridge) is mounted. Each electronic scale has an integrated load cell that ensures that a weight can be measured.

DMS load cells are the most widely used, but there are other technologies for weight determination in weighing technology such as EMFC, electromagnetic force compensation, in which mass determination takes place completely without friction loss. Generally, load cells are installed in industrial plants, such as filling plants, weighing silos or checking the filling level of tanks.

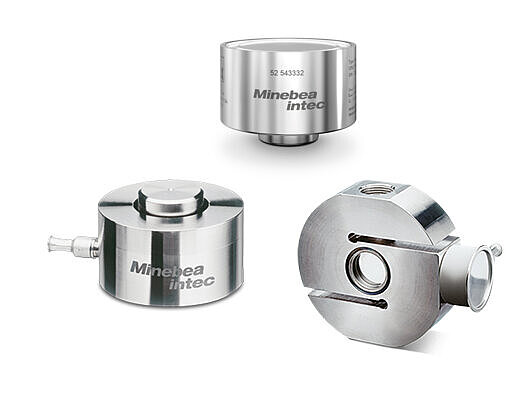

What types of load cells are there?

There are many different types of load cells, depending on the application they are designed for. Bending beam or shear beam load cells are often used, for example, in platform scales. Compression load cells, on the other hand, are usually installed under a structure (container, silo, etc.) that is loaded with a weight from above and are often designed for higher loads. With tensile load cells, on the other hand, a weight is attached to the load cell. Load cells are the most important component of a scale, be it a platform, floor scale or bench scale.

How does a load cell work?

Although the material of the spring body is stable, it is also minimally elastic. This means that when a weight is placed on the scale, this force acts on the spring body. The term spring body derives from the fact that the material deforms minimally as a result of this effect, but returns to its original shape - or "springs" as soon as no force is applied to it. This is an elastic deformation of the measuring element. This change is detected by the strain gauges mounted on the load cell. A strain gage, or "DMS" for short, is an electrical conductor. Because it is firmly attached to the spring body, any force acting directly on the measuring strip extends or shortens it. The electrical resistance increases when the measuring strip is stretched, but decreases when it is compressed. This change in resistance changes the output signal of the load cell and thus makes it possible to determine which force is acting on the load cell - in other words, which weight is currently being weighed.

In the next step, the electrical signal is transmitted to weighing electronics or weighing terminals (which could also be evaluation and display devices). The measured weight can then be read on the display of a display device, indicator or weighing controller.

Important features of load cells

In addition to the various types of load cells, these differ in the manufacturing materials used, mostly aluminium and stainless steel. In addition to the material, the environment in which the cell is used must also be taken into account: Especially the ambient temperatures are an important factor: Every material changes due to heat or cold, which also applies to load cells and strain gages. In order for the exact weight to be displayed, the load cell must be able to compensate for external interference.

Accuracy is particularly important when weighing: load cells are classified into different accuracy classes. These are divided into classes A to D, where A is the best possible class. Strain gage load cells are mostly produced in classes C and D. Depending on the area of application, the requirements for the required accuracy vary: For example, the pharmaceutical industry requires different accuracies and process measurement uncertainties than for instance recyling or retail.

How-to Guide Single point load cells

Highly accurate measurement results with only one load cell

Read How-to Guide


Product videos

Inteco® load cell

The load cell Inteco® represents a consistent enhancement to the well-known PR 6201. With an output signal of 2 mV/V, additional load levels of up to 75 t, higher accuracy classes (C6) and high-quality stainless steel, it has a wider range of potential applications. Accuracy classes D1 (0.04%), C3 (0.015%) and C6 (0.008%). As a digital weighing solution with the converter Connexx®, the load cell Inteco offers fast signalling times and optimal transparency in dosing and weighing processes. The Minebea Intec mounting kits FLEXLOCK minimise the effect of movements on the weighing result at the same time.

Weighing module Novego®

The weighing module Novego® was specifically developed to meet the increasingly stringent requirements of the food industry. This hygienic all-in-one solution boasts a range of innovative properties to ensure simple, error-free installation and maximum resistance to lateral forces. Novego® ensures process reliability, measurement accuracy and rapid cleaning. The exceptional corrosion resistance of the stainless steel and the product design in accordance with EHEDG guidelines make the weighing module resistant to dirt, water and even aggressive cleaning products. Novego offers innovative features that ensure simple, error-free installation. With the weighing module, you opt for - fast, precise, hygienic installation - and against additional, time-consuming constrainer alignments.
