Industrial scales: versatile solutions for precise production processes Learn how to use industrial scales efficiently for control, dosing and order picking, among other things.

Whether for checkweighing, completeness verification, classification, sorting and counting by weight or dosing: our industrial scales can be integrated at almost all points of the production process. Our static industrial weighing solutions include table scales, floor scales, flat-bed scales, pallet scales and weighing platforms.

We have both highly sensitive industrial scales for measurements of 0.001 g and very robust weighing systems with which you can weigh several tonnes. Optimise your industrial weighing solution by equipping your industrial scale with one of our advanced weighing indicators and one of our software solutions.

What industrial scales are there?

Industrial scales make an important contribution to the production process chain. Given the wide range of scales available, it is important to find a customised solution for highly technical processes that fits seamlessly into the existing production process.



Industrial scales
COMBICS®

There is always a solution here: the Combics series of industrial scales is characterised by particularly high diversity and precision.

Industrial scales
SIGNUM®

The compact solution for numerous applications

Industrial scales
Industrial scale Puro®

Industrial scales
MIDRICS®

The robust complete scale for reliable quality control

Industrial scales
Flat-bed scale IF

The Flat-bed scale IF was developed for maximum use close to the floor in the smallest of spaces

Industrial scales
Pallet Scales IU

Pallet scale IU in 48 basic models for a wide range of industrial requirements

Industrial scales
Weighing platform IS

Digital high-resolution weighing platforms with IP protection rate IP54

Industrial scales
Weighing platform Midrics

Robust weighing platform for reliable quality control in the food, pharmaceutical, chemical and metal industries. Learn more!

Industrial scales
Weighing platform Combics®

Modular system of weighing platforms for demanding weighing tasks

Weighing electronics
Weight indicator Midrics

A range of indicators are available depending on the resolution, verification capability and use (displays and control panels).

Industrial scales
Weight indicator Combics®

A range of indicators are available depending on the resolution, verification capability and use (displays and control panels)

Weighing electronics
Weight indicator Combics® 2 Ex (CAIXS2)

Combics® 2 Ex is specially designed for use in potentially explosive areas of your process chain

How do you choose the right industrial scale?

Requirements on the device such as the weighing range, resolution or the reproducibility of results as well as physical characteristics such as the material of the scale play a role in the selection. Likewise, external factors such as external interference or process requirements place additional demands on an industrial scale. The choice of a suitable interface is also essential so that the scale can communicate seamlessly with the existing devices.

Request advice now

Industrial bench and floor scales

Combics® bench and floor scales

The Combics® bench and floor scale combines precision with variety. Our platforms are equipped with proven, precise strain gauge technology - individual variants with high-resolution electromechanical force compensation. The modular design allows maximum flexibility for separate installation of indicator and platform as well as targeted replacement of individual components. There is a choice of:

  • Three intuitively operable indicators for different requirements
  • Various material designs such as stainless steel
  • Load ranges from 3 kg to 3 t
  • Readability from 0.001g g to 200 g
  • Platforms in a wide range of designs and dimensions
  • Various resolutions from 3,000 d to 340,000 d
  • Calibration version and Ex solutions
  • A diverse range of accessories, options and extensions
  • Optimal connectivity and integration into existing systems
  • Easy to use application programmes

About the product

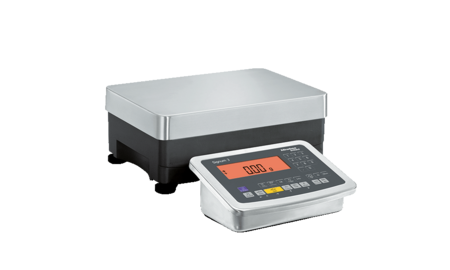

Bench scale Signum®

The Signum® bench scale was specially developed as a compact solution for different industries. All scales of the series are based on strain gauge (DMS) or electromagnetic force compensation technology (EMF). In daily weighing, they are characterised by short measuring times and flexibility. The Depending on the application, the indicator can be set up independently of the platform location or mounted on a pedestal. Depending on the precision level, our customers choose models in the Supreme, Advanced or Regular version.

There is also a choice of:

  • Three intuitive indicators with different application levels
  • Protection classes IP43 or IP65
  • Various material designs, e.g. stainless steel
  • Load ranges from 0.6 kg to 65 kg
  • Readability from 0.001 g to 10 g
  • Calibration version and Ex solutions
  • Large variety of interfaces
  • Wide range of accessories, options and extensions

About the product

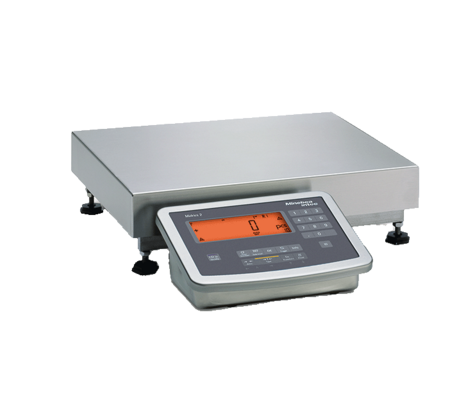

Midrics® bench and floor scales

The Midrics® bench and floor scale is robust, durable and easy to clean. Depending on the application, the indicator can be set up independently of the platform location or mounted on a pedestal.

There is a choice of:

  • Wide range of indicators and platforms
  • Protection classes IP65 or IP67/IP68
  • Load ranges from 3 kg to 3 t
  • Readability from 0.2 g to 200 g
  • Calibration version
  • Various resolutions from 3,000 d to 15,000 d
  • Large variety of interfaces
  • Wide range of accessories, options and extensions

About the product

Industrial scale Puro®

The scales of the Puro® series were developed for the most diverse weighing requirements. Whether weighing, Counting or quality control - all Puro® scales are characterised by speed and reliability. precision. With its robust design as well as innovative and user-friendly applications, the Puro® scales prove themselves in all areas of industrial weighing.

Puro® makes excellent weighing technology affordable

Customers choose their Puro® from an extensive portfolio according to their needs. Delivery takes place within the shortest possible time via one of our worldwide distribution hubs.

  • Compact scales - With large, bright displays and a traffic light function for high operating comfort

  • Weighing indicator - Reliable, precise weighing results in practically no time at all

  • Table and floor scales - In many dimensions, capacities, resolutions and designs to suit your needs

  • Table and floor weighing platforms - Robust solutions for a wide range of requirements

About the product

Your advantages from our industrial scales

✓ Increase efficiency

✓ Intuitive operation prevents application errors

✓ Reduction of rejects

✓ Reliable sample weighing

✓ Time and cost savings during cleaning due to

✓ Hygienic design



Request advice now

Weighing platforms

Industrial weighing platforms are characterised by particularly large platforms and are suitable for all areas where heavy and voluminous loads are weighed. The IF flat-bed scale and the IU pallet scale can be used also in potentially explosive areas. They have a hygienic design, are mobile thanks to castors and stand for low maintenance costs and a long service life.

Flat-bed scale IF

The IF flat-bed scale was developed for maximum use close to the floor in the smallest of spaces. The IF flat-bed scale is designed for maximum use close to the floor in the smallest space. Its very low profile contributes to safety and makes it very easy to clean. It is a high-quality, flexible and optionally mobile weighing station and is used in the production process wherever reliable measurement results and hygienic solutions are required. are. Your advantages and options are:

  • Customised fabrications on request
  • Various material designs such as stainless steel
  • Verified version and Ex solutions
  • Protection classes IP65, IP68 or IP69
  • Resolution up to 30,000 d, in legal metrology
  • Traffic up to 2 x 3000 e
  • Load ranges from 150 kg to 3,000 kg

Abou the product

Pallet scale IU

In order to be able to offer an individual weighing solution for the most diverse requirements of the industry at any time, the the IU pallet scale is available in 48 basic models. A comprehensive range of additional options rounds off the series:

  • Various material designs such as stainless steel
  • Ex solutions
  • Protection classes IP65 or IP68
  • Resolution from 15,000 d to 30,000 d, 1 x 3,000 e and 2 x 3,000 e
  • Load ranges from 300 kg to 3,000 kg
  • Insert plates and additional stands on request
  • Customised fabrications on request





About the product


FAQ

How do adjustment, calibration and conformity assessment work for industrial scales?

A large number of Minebea Intec's industrial scales have a built-in calibration weight circuit. This allows the accuracy of the scale to be checked at the touch of a button without an additional test weight.

The sensitivity of the scale is also adjusted simply by pressing a button. To ensure traceable weighing results and compliance with legal requirements, we also offer calibration and conformity assessment (formerly verification) of scales as part of our services. Our competence in this field is evidenced by the following certifications and accreditations:

  • Certificate on the recognition of a quality management system according to 2014 / 31 / EU for non-automatic weighing instruments
  • DAkkS accreditation for the calibration of non-automatic weighing instruments according to DIN EN / ISO / IEC 17025
  • DAkkS accreditation for calibration of weights from 1 mg - 1000 kg according to DIN EN / ISO / IEC 17025
  • Certified QM system according to DIN ISO 9001

Are industrial scales also available for hazardous areas (EX solutions)?

For the safe operation of equipment in hazardous areas, local safety requirements and the safety level of the equipment must be compatible. As a reliable partner to industry, Minebea Intec has international approvals such as IECEx, ATEX, NEC, CEC and NEPSI and an extensive range of industrial bench and floor scales for hazardous areas. All of our ATEX approved scales as per the list below can be used can be used as an Ex solution in EX zones 1 and 21.


The following table and floor scales are available as ex-version:

Combics® bench and floor scales

Precision, variety and modular design for maximum flexibility.

Indicators and platforms available as ex-solutions.



Bench scale Signum® Supreme

The compact solution for diverse industries, with EMF technology

for highest precision. Scale available as Ex solution.


Flat-bed scale IF

The high-quality, flexible and mobile weighing station

for heavy and large loads.


Pallet scale IU

Reliable and versatile for weighing pallets.

What configuration options are available for industrial scales?

Platforms

Depending on the size and weight as well as the environment of the goods to be weighed, and products, there are different platforms to choose from. Together with the indicators, these provide an optimal solution for almost any weighing task and application.

Various material versions

from stainless steel to painted or powder-coated and galvanised

Load ranges

from 0.6 kg to 3,000 kg

Platform size

from 320 mm to 2,000 mm

Readability

0.001 g to 1000 g

Calibratability/Ex solution

Various accuracy classes/ different Ex zones

Which weighing indicators (display and control units) are available for industrial scales?

Depending on resolution, calibration capability and application, various indicators (display and operating units) are available. Your advantages are:

Intelligent software applications

Easy-to-use application programmes for versatile applications such as counting, checking or pre-packaging inspection are already pre-installed

Multiple interfaces

Optimum connectivity and integration into existing systems, for example via RS 232, RS 485/422, analogue 4-20 mA, digital inputs/outputs, Profibus DP, Ethernet TCP/IP

Indicator Combics® 1

For simple weighing solutions

  • 14-segment display in the display


Indicator Combics® 2

For sophisticated weighing solutions

  • 14-segment display in the display
  • High-contrast display with LCD, backlit
  • Also as an ex-solution

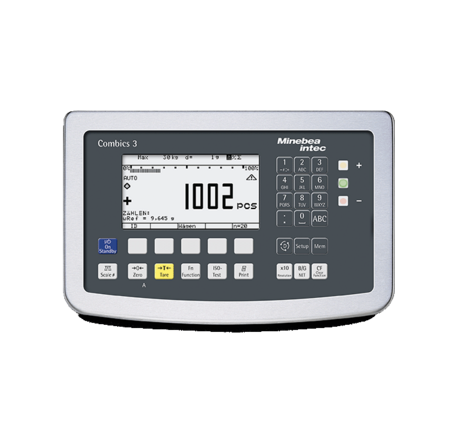

Indicator Combics® 3

For complex weighing solutions

  • High-contrast graphic display, backlit
  • Supported application packages softkey
  • Traffic lights for control applications

Indicators Midrics®

  • Midrics 1 for simple weighing solutions, with backlit LCD display
  • Midrics 2 for complex weighing solutions, with backlit LCD display, numeric keypad and extensive application program

What accessories and extensions are available for industrial scales?

All accessories and extensions to the bench and floor scale portfolio have been developed with a special focus on the needs of our customers and have proven themselves many times over in a wide range of industries.

Industrial printer

Compact and powerful for a wide range of applications, there are several industrial printers to choose from. The advantages and options are:

  • Reliable and fast printing of process, product and weighing data
  • Simple, intuitive installation and operation
  • Robust, space-saving product design
  • Process reliability and quality through seamless print data management
  • Various printing methods: Direct thermal, thermal transfer or 9-pin matrix

Barcode reader

  • Optical and acoustic feedback when reading the barcode
  • Processes a wide range of barcode types, up to 120 mm wide
  • Green LED for user feedback

Floor stands and trestle stands

  • Different material designs
  • Diverse, application-supporting heights

Pit frame

  • Different material designs
  • Installation kit available

Ramps

  • Various models
  • Installation kit included

What software solutions are available for industrial scales?

Innovative, PC-based software products are available for the reliable integration of our bench and floor scales into production lines. These are continuously updated and expanded. For our service customers, the updates are automatically included as part of their contract level.

SPC@Enterprise software

The powerful software for statistical process control now offers even more advantages:

  • Effective networking of diverse devices and systems from Minebea Intec and other suppliers
  • Fast process control through powerful monitor programme
  • Simple creation of production or calibration statistics
  • Easy data backup, less risk of data loss

Software ProRecipe XT®

Intelligent recipe management guarantees safe processes in many industries.

  • For intuitive control and monitoring of recipe processes
  • Can be flexibly integrated into production systems
  • Guaranteed traceable product quality
  • Meets the validation requirements of the pharmaceutical industry
