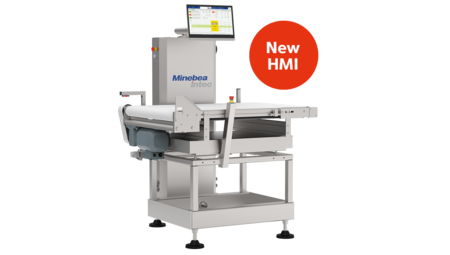

Dynamic Checkweighing Synus®
With its modular and configurable design, Synus can cover numerous applications including those requiring Weights & Measures approvals.
Product Features Checkweigher Synus®
- EMFC high-resolution weighcell technology offering a high throughput combined with maximum accuracy
- Maximum throughput of 250 pcs. per minute
- Optimized standard configurations for versatile applications
- Possibility for integrating a Vistus® metal detector, even after initial installation
- Adjustable conveyor height, allowing you to adapt the checkweigher to changing situations
- Weight: approx. 250 kg (depending on configuration)
- For process speeds of up to 1.5 m/s
- MID approved for up to 3 m/s
Certifications
- 21 CFR Part 11
- MID
Applications
- Classification
- Fill quantity control
- Statistical process control
- Statistics
- Weighing
Product details
Technical Data | WS 1 kg | WS 2 kg | WS 5 kg | WS 7 kg |
Weighing range (g) | Up to 1,000 | Up to 2,000 | Up to 5,000 | Up to 7,000 |
Smallest calibration value (g) | 0.1 | 0.2 | 0.5 | 1 |
Standard throughput (pcs/min) | Up to 250 | Up to 200 | Up to 180 | Up to 180 |
Speed ranges (m/s) | 0.2 - 1.5 | 0.2 - 1.2, 0.5 - 1.5 | 0.2 - 1.0, 0.5 - 1.4 | 0.2 - 1.0, 0.5 - 1.4 |
Working height | 600 mm - 1,100 mm | 600 mm - 1,100 mm | 600 mm - 1,100 mm | 600 mm - 1,100 mm |
Protection Rating | IP 54 (standard), IP65 (optional) | IP 54 (standard), IP65 (optional) | IP 54 (standard), IP65 (optional) | IP 54 (standard), IP65 (optional) |
